Comfort instantaneous water heaters
DHE 18/21/24

  • 360°
    • Instantaneous water heater with full electronic control
    • Accurate water temperature delivery at all times thanks to 4i technology
    • Sufficient hot water for multiple draw-off points
    • Easy to use backlit multifunction display
    • Energy and water consumption LEDs
    • Particularly economical operation with ECO mode
    • Individual memory buttons for setting preferred temperatures
    • Additional functions such as a temperature limit, wellness shower program, automated bath filling and childproofing for greater convenience and safety
    Questions about the product Get contact
    award
    award
    award

    Product details

    Use water your way

    Every one of our fully electronic instantaneous water heater models provides hot water at the exact temperature you have set at all times. No ifs or buts. The 4i technology ensures that nothing interferes with the outlet temperature. Enjoy constant hot water in the shower, even if somebody needs to wash their hands at the washbasin beside you.



    Make all your own choices

    The haptic rotary selector ensures the appliance is very easy to operate: intuitive, instant, precise.



    Know exactly what's going on

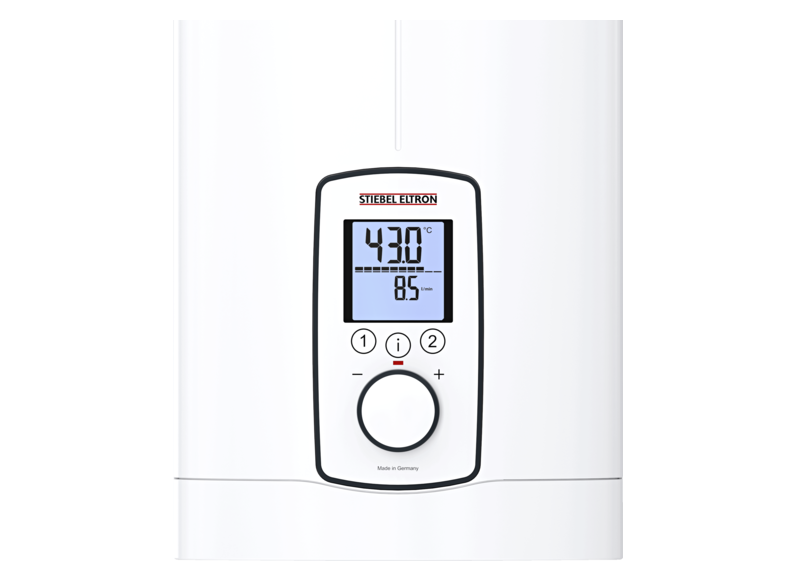

    The illuminated multifunction display gives you a clear overview of your required water temperature, the ECO level and current power consumption. You can check energy consumption, flow rate, time, status and service information in the lower part of the display.


    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 202656

    Rated voltage: 400 V

    Rated voltage 1: 380 V

    Rated voltage 2: 400 V

    Rated voltage 3: 415 V

    Rated output: 18/21/24 kW

    Rated output 1: 16,2/19/21,7 kW

    Rated output 2: 18/21/24 kW

    Rated output 3: 19,4/22,6/25,8 kW

    Rated current: 29/31/35 A

    Rated current 1: 27,6/29,5/33,3 A

    Rated current 2: 29/31/35 A

    Rated current 3: 30,1/32,2/36,3 A

    Fuse protection: 32/32/35 A

    Fuse protection 1: 32/32/35 A

    Fuse protection 2: 32/32/35 A

    Fuse protection 3: 32/32/40 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Frequency 3: 50/- Hz

    Phases: 3/PE

    IP rating: IP25

    Temperature setting: 20-60 °C

    Colour: white

    Height: 466 mm

    Width: 225 mm

    Depth: 116 mm

    Weight: 3.10 kg

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
