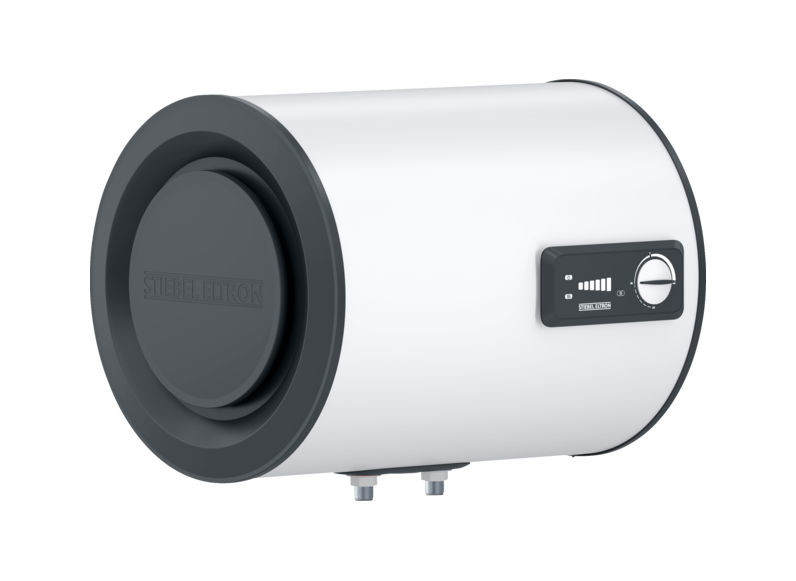

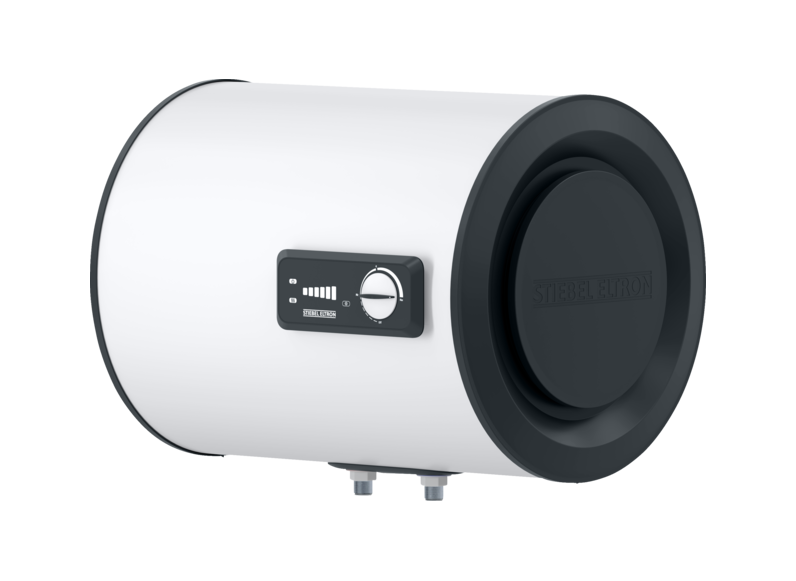

Wall mounted cylinder
ESH 30 H Plus T

  • 360°
    • Precise temperature control with capillary thermostat
    • User friendly temperature selection with front-mounted dial and LED indicator
    • Sufficient hot water for multiple draw-off points
    • “Made in Germany” maintenance-free copper heating element
    • Durable, corrosion-resistant casing made from tough polypropylene polymer
    • Current Leakage Limiter (CLL) for protection from electric shock
    • Protection from electric shock with Earth Leakage Circuit Breaker (ELCB)
    Questions about the product Get contact

    Product details

    Today, hot water is largely taken for granted. First class storage water heater solutions from STIEBEL ELTRON offer you superlative showering comfort whilst also lowering your domestic hot water bills.

    The ESH is like having a hot spring in your bathroom. It can heat the stored water up to a maximum temperature of 75 °C. A timeless design is married with superior corrosion resistance to ensure a long service life and trouble-free showering comfort.


    Technical datasheet

    Product Number: 204050

    Height: 409 mm

    Width: 548 mm

    Diameter: 409 mm

    Weight: 14.3 kg

    Safety valve: Pressure safety valve

    IP rating: IP24

    Cylinder material: Steel, wet-process enamel

    Heating element material: Copper

    Temperature range: up to 75 °C

    Nominal capacity: 30 l

    Electrical connection: 1/N/PE~220-240 V

    Rated current: 9.1-9.9 A

    Rated output: 2,000 W

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
